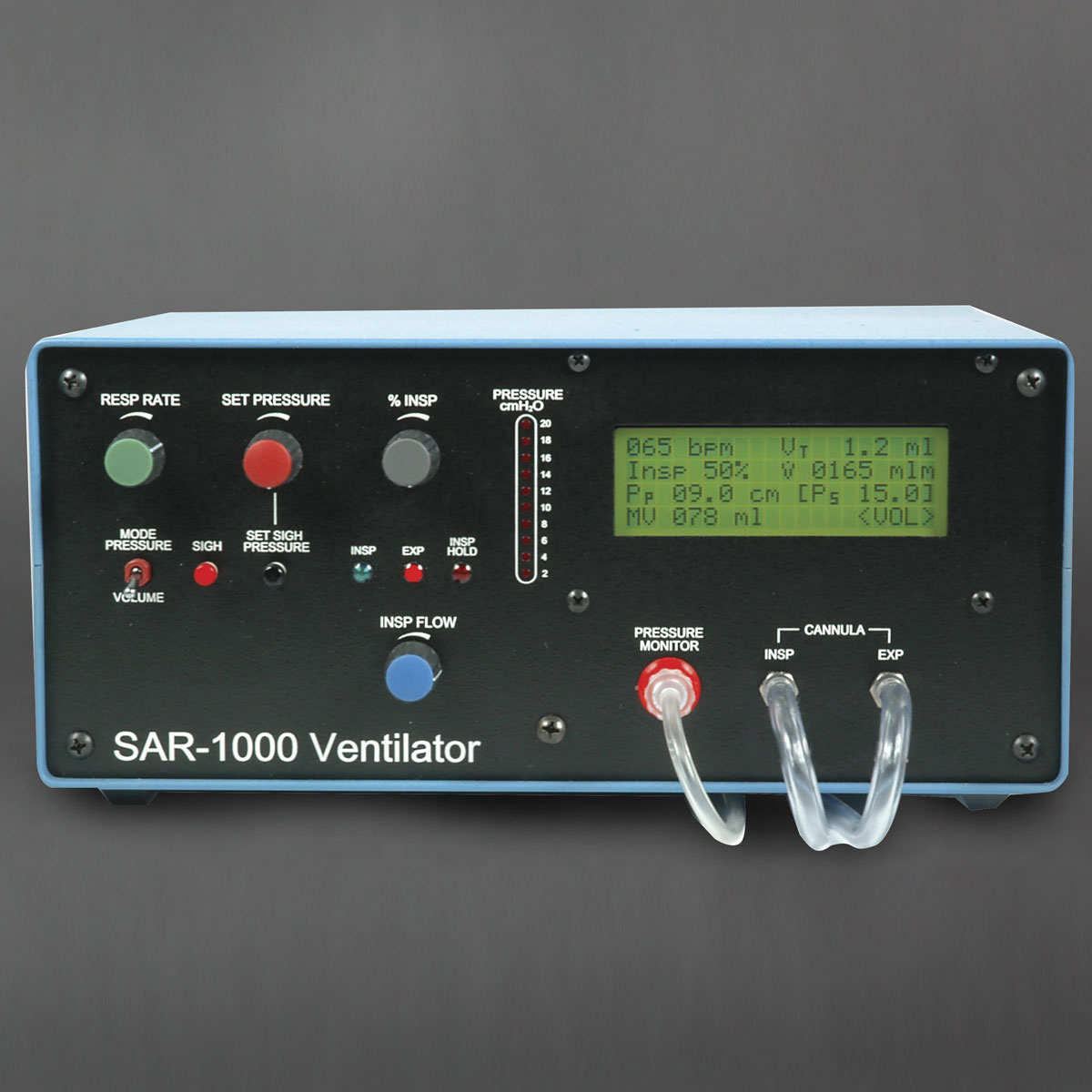

EZ-SAR-1000 Advanced Volume-Pressure Ventilator

Operates as either a volume or pressure-cycled ventilator.

• Wide tidal volume and rate range
• User-friendly set-up and operation
• Accommodates mice up to guinea pigs
• Direct display of Tidal Volume and all parameters
• Remote control via USB port
• Multi-animal set-up available
• Safe for use with oxygen and anesthetic gases

EZ-SAR-1000 Advanced Volume-Pressure Ventilator Specifications:

Respiratory rate range: 5 – 200 breaths/min
Tidal volume range: 0.2 – 35 ml
Inspiration/Expiration range (%Insp): 10 – 90%
Inspiratory flow rate range: 100 – 1000 ml/min
Pressure control range: 0 – 50.0 cmH₂O
Internal air pump capacity: 3 LPM @ 5psi (0.34 bar)
Analog pressure output voltage: 50 mV/cmH₂O
Logic Sync Out voltage: 5 V (TTL)
Trigger In voltage: 5V (TTL)
Remote-control interface: USB
Front panel ports: Luer female
Rear panel ports: 0.15″ flex tubing barb (4mm)
Power requirements (supplied with main cord): 120/240 VAC, 50VA
Dimensions: 9.00″L x 9.00″W x 4.00″H
